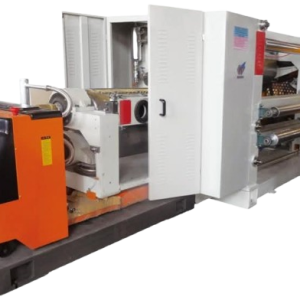

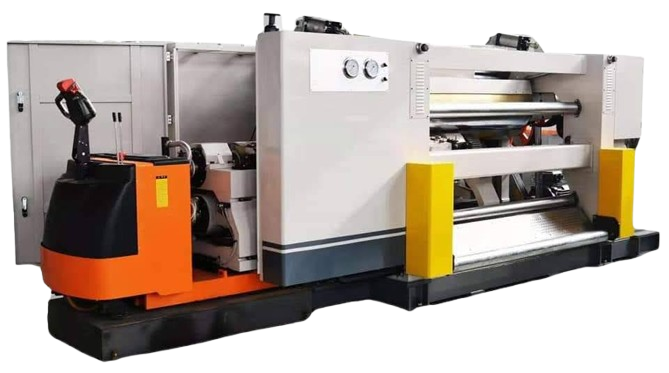

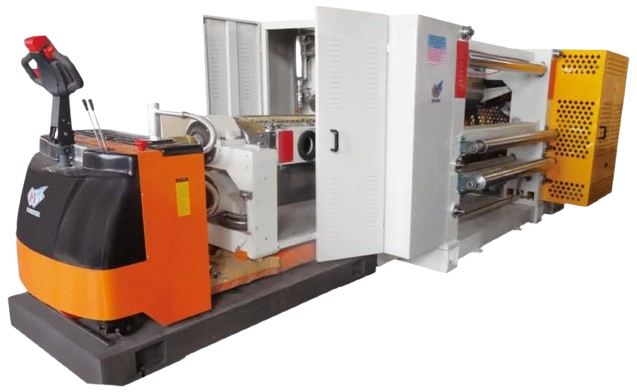

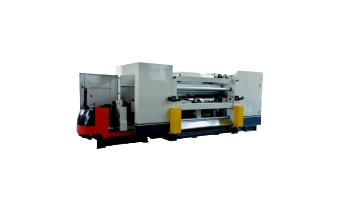

Description: Fingerless Vacuum Paper Feeding Uses vacuum suction (via a high-pressure fan and silencer) instead of traditional fingers, ensuring smooth, gentle paper feed at high speeds—ideal for delicate liners. 2. Robust Cassette Roll System Comes with a "cassette" design allowing fast roll changes (15 minutes or less). Rolls can be easily swapped out to switch flute types (B/C/D/E/F) without extensive downtime. 3. Heavy-Duty Frame & Drive Cast-iron heavy wall plates (~150 mm thickness) mounted on a sturdy base. Employs an independent gearbox and universal joints (gimbal-type drives) for consistent torque and smooth operation. 4. Precision Corrugating & Pressure Rolls Corrugating rolls: CNC ground and hardened alloy steel (typically 320 mm Ø), surface hardness HRC 58+ for durability. Pressure rolls: similarly hardened and supported by high-temp grease-bearing systems.
Provide By: GAYATRII GEAR INDUSTRIES
City : N/A
Contact : 9115975675
Categories: Machinery, Paper, Paper Converting Machinery
